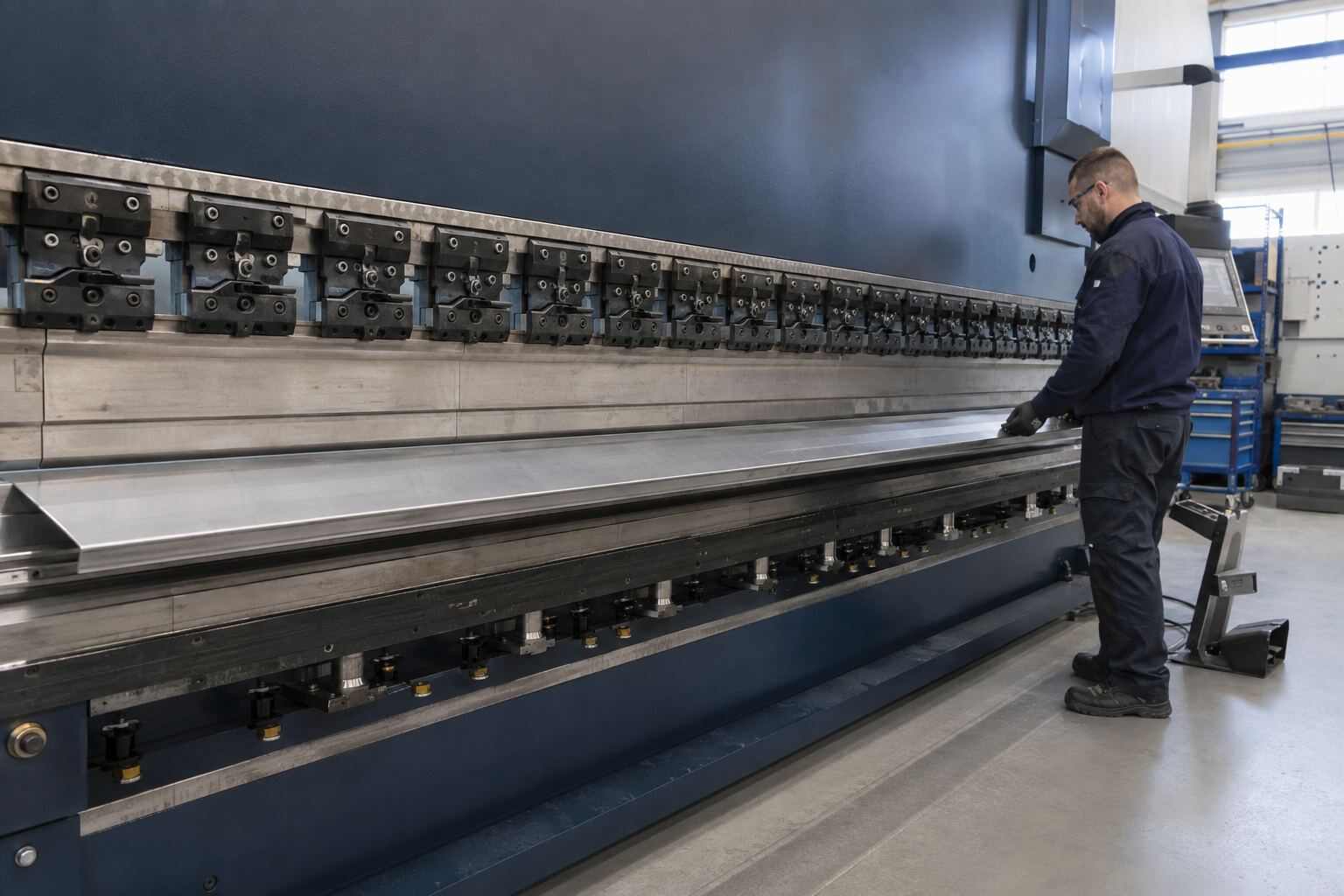

Long folded components place greater demands on the bending process than shorter parts. As bend length increases, the press brake and tooling naturally flex under load, creating variation in bend angles if left uncompensated.
Press brake crowning offsets this movement, helping maintain consistent forming across the full length of a component. Understanding how crowning works allows engineers and manufacturers to make better design, production and supplier decisions, particularly where dimensional accuracy and repeatable assembly are essential.
As bend length increases, the press brake and tooling naturally flex under load. Crowning compensates for this movement, allowing the bend angle to remain consistent across the entire component.
Every press brake experiences a degree of elastic deflection during forming. The machine frame, bed and tooling respond to the force required to bend sheet metal. This movement becomes more noticeable when producing longer parts because the load is distributed across a greater distance.
The result is a slight difference in the force applied along the length of the bend. Without compensation, the centre of the component receives different forming conditions compared with each end.
A long electrical enclosure panel provides a practical example. Even if the material, tooling and programme remain unchanged, natural machine deflection can influence the finished bend profile. Crowning introduces controlled compensation into the forming process, helping maintain a more uniform bend angle from one end of the panel to the other.
Modern press brakes may use hydraulic or mechanical crowning systems. Both approaches are designed to offset predictable deflection within the machine structure. The appropriate solution depends on the equipment and production requirements rather than one method being universally preferable.

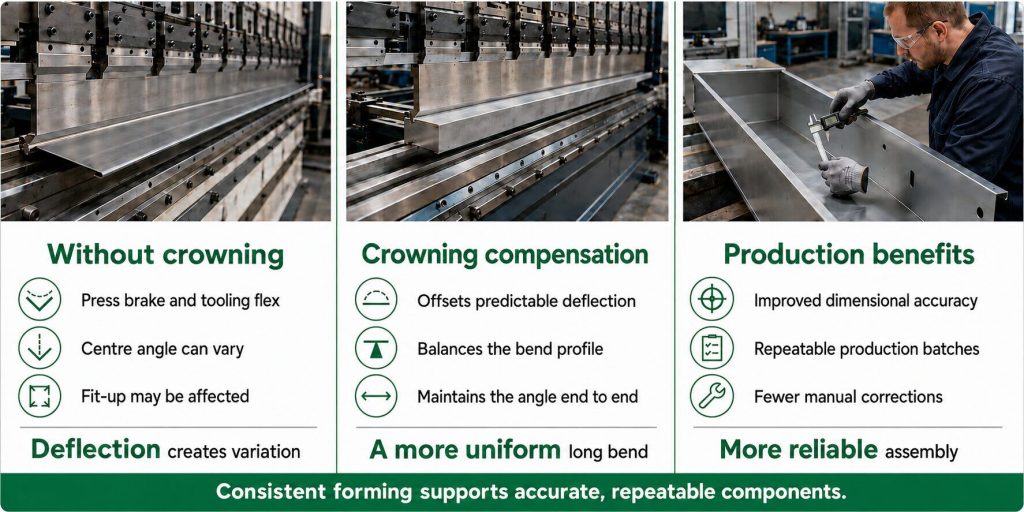

Without crowning, the centre of a long bend can form at a different angle from the ends, creating variation across the finished component. This difference may not be obvious during bending, yet it can affect assembly once the part is combined with mating panels, brackets or frames. A long enclosure panel, for example, relies on a uniform bend angle to align correctly with adjoining components and fixing points.
Crowning compensates for predictable press brake deflection, helping maintain a consistent bend profile along the full length of the workpiece. More consistent bend geometry supports improved fit-up, reduces the need for assembly adjustments and provides greater confidence that manufactured parts will match the original design intent.
Consistent forming supports dimensional accuracy throughout the finished component, helping folded profiles achieve the intended geometry.
Long folded parts rarely consist of a single bend. Profiles may include return flanges, mounting faces, stiffening features or multiple formed sections. Each bend influences the dimensions that follow.
Consider a long equipment cabinet panel with several formed edges. Variation in the initial bend angle can alter the position of subsequent features, making it more difficult to achieve the intended fit once the assembly progresses.
This cumulative effect becomes increasingly important where components interface with fabricated frames, welded assemblies or precision-machined parts.
For manufacturers, dimensional control begins with stable forming conditions rather than correcting completed parts after production. Crowning supports this objective by improving consistency throughout the bending process.
Projects requiring close coordination between laser cutting, forming and assembly also benefit from maintaining dimensional accuracy throughout the fabrication process, where each manufacturing stage contributes to the finished result.
Reducing variation across the full bend length produces more consistent components and supports reliable quality control. Without crowning, the centre of a long bend can form at a different angle from the ends due to press brake deflection. This gradual change may affect assembly, even if individual measurements appear acceptable.
During inspection, checking multiple points along the bend provides a clearer assessment of the finished profile. By compensating for predictable machine movement, crowning helps create a more uniform bend angle across the component, making inspection more representative and supporting consistent downstream assembly.

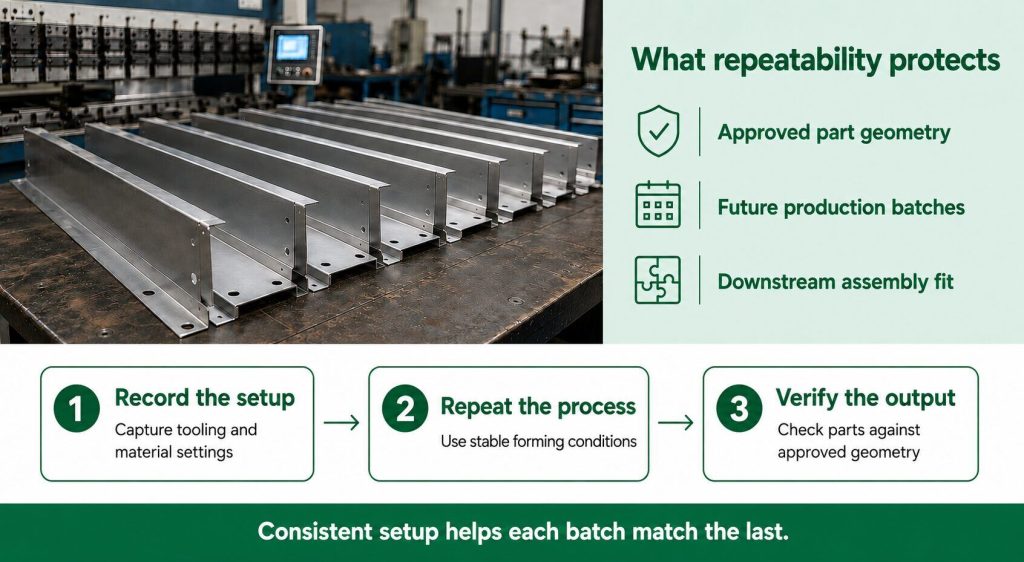

Repeatable forming helps ensure components produced in future batches match previously approved parts. This is important for staged production, replacement components and ongoing manufacturing programmes where consistency is expected. Stable forming conditions reduce variation between production runs and provide greater confidence that new parts will integrate with existing assemblies.
Crowning contributes by compensating for predictable press brake deflection during long bends, creating a more controlled process with fewer adjustments. Combined with suitable tooling, material selection and setup, it supports consistent manufacturing outcomes and gives engineers and procurement teams greater confidence when specifying repeat production.
Reducing manual adjustments improves production consistency and supports a more controlled manufacturing process.
Without crowning, operators may need to compensate for bend variation by introducing additional adjustments during setup or production. While experienced operators can make informed corrections, manual intervention increases process variation between batches.
Repeated angle corrections also extend setup activities and create additional opportunities for inconsistency, particularly across complex production schedules.
Using crowning to compensate for predictable machine deflection enables the forming process to achieve greater consistency from the outset. Production becomes less dependent on repeated correction and more focused on maintaining stable process conditions.
This approach benefits both prototype work and repeat manufacture, where consistency between components remains a priority.
Early consideration of manufacturability through sheet metal design and prototyping can also identify forming challenges before production begins.
Controlled forming supports tighter dimensional control across components containing multiple bends, assembled features and downstream manufacturing operations.
Many fabricated products include several folded sections that must align accurately before welding, fastening or final assembly. Variation introduced during the initial forming stages can influence the overall geometry of the completed fabrication.
Enclosures, cabinets and structural fabrications illustrate this challenge. Components may include multiple bends, welded corners, removable panels and fastening features. Consistent bend geometry helps each element fit together more predictably throughout production.
Process control also benefits finishing operations. Components that assemble correctly before coating are more likely to maintain their intended fit after powder coating or other finishing processes.
For engineers evaluating fabrication suppliers, the ability to produce repeatable long folded components depends on more than press brake capacity. Machine condition, tooling, process planning, material behaviour and crowning all contribute to reliable manufacturing outcomes.
Manufacturers seeking metal bending and forming services should consider how forming processes are controlled rather than focusing solely on equipment specifications. Likewise, projects involving precision sheet metal fabrication benefit from understanding how individual manufacturing stages influence the final assembly.
Press brake crowning is a key part of producing accurate long folded components. By compensating for natural machine deflection, it helps maintain consistent bend angles, improves dimensional control and supports repeatable manufacturing.
These benefits contribute to better assembly fit and more reliable production outcomes. If you’re specifying long folded sheet metal components, speak to the Greengate team before production begins. Early manufacturing input can identify forming challenges and help achieve more consistent results throughout the fabrication process.
