Many manufacturing problems begin long before the first sheet of metal reaches the workshop. Engineering drawings may appear complete, yet decisions made during the design stage can introduce unnecessary complexity, create production constraints or increase the likelihood of quality issues once fabrication starts.
A supplier-led Design for Manufacture (DFM) review provides valuable technical input before drawings are released. Rather than assessing whether a component can be produced, the review considers how it can be manufactured efficiently, consistently and with fewer production risks.
For design engineers, manufacturing engineers and procurement teams, early collaboration creates opportunities to refine designs while changes remain straightforward to implement. Greengate Metal Components works with customers during this stage, reviewing sheet metal designs against practical manufacturing processes to support reliable production without compromising design intent.
A supplier DFM review identifies manufacturing limitations before materials are ordered or production begins, reducing the risk of design revisions during manufacture.
Engineering models are developed to satisfy functional requirements, whereas fabrication introduces practical considerations involving machinery, tooling and production methods. Reviewing drawings alongside an experienced fabrication supplier highlights whether a design aligns with established manufacturing processes before production planning begins.
A structured manufacturability review typically examines:
Consider a folded enclosure requiring a return flange deeper than standard press brake tooling can accommodate. The design may satisfy every functional requirement, yet manufacturing the component could demand specialist tooling or an alternative forming strategy. Identifying the issue before production enables the design team to evaluate practical alternatives without disrupting downstream planning.
Early discussions also allow engineers to balance product performance with manufacturing capability. Small adjustments made during the design stage are significantly easier to manage than revisions introduced after production has been scheduled.
If your project is still being developed, Greengate’s design for manufacture support can help review fabrication requirements before drawings are finalised.
Not every feature requires extremely tight tolerances. Reviewing drawings early helps ensure tolerances reflect functional requirements rather than applying unnecessary precision throughout the component.
Tolerance selection influences manufacturing methods, inspection requirements and production planning. Applying identical tolerances across every feature may appear thorough, although it can increase complexity where additional precision provides no functional benefit.
During a supplier DFM review, manufacturers consider questions such as:
This process focuses attention on dimensions which genuinely influence component performance. Features with greater functional significance receive appropriate engineering attention, while non-critical dimensions remain practical for production.
The objective is not to reduce quality expectations. Instead, it ensures drawings communicate engineering priorities clearly, allowing manufacturing and inspection activities to concentrate on characteristics which matter most.
Some component features appear straightforward in CAD yet cannot be produced efficiently using standard fabrication equipment.
Three-dimensional models provide considerable design freedom. Manufacturing equipment, however, operates within physical constraints determined by tooling geometry, machine access and forming limitations.
Supplier DFM reviews examine features including:
For example, a short flange positioned beside another formed section may prevent standard press brake tools reaching the required bend location. Likewise, holes positioned too close to a bend line may deform during forming, affecting dimensional accuracy after manufacture.
Reviewing these details before production enables engineers to modify geometry where appropriate or evaluate alternative manufacturing approaches without introducing unnecessary disruption later in the project.

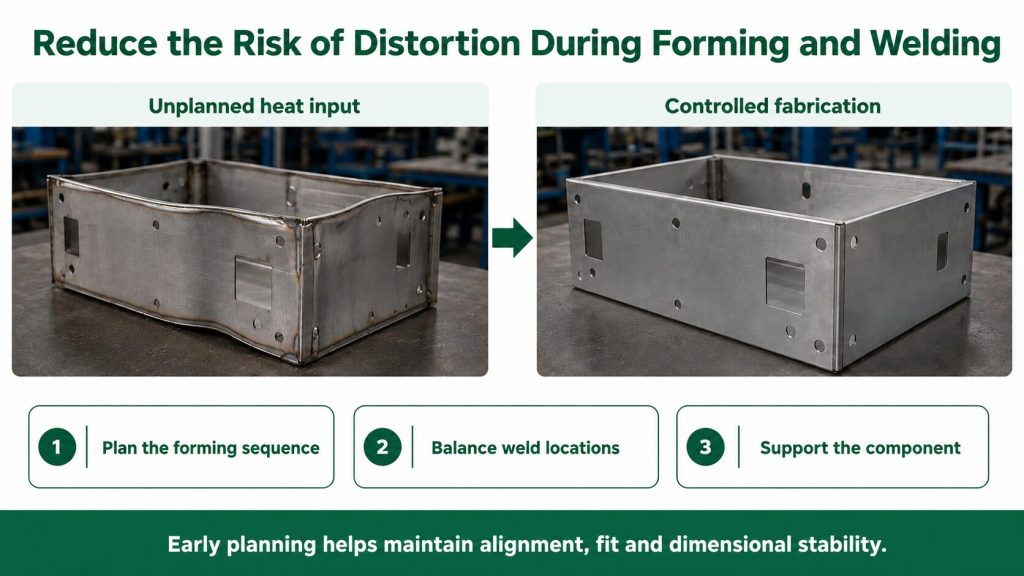

Material movement during forming and welding should be considered before production to maintain dimensional stability throughout manufacture.
A supplier DFM review considers:
For example, a fabricated enclosure with multiple welded corner joints may distort if heat input and weld sequencing are not planned carefully. This can affect panel alignment, door fit or mounting positions during assembly. Reviewing these factors before production allows engineers to refine the design, adjust fabrication methods where appropriate and improve component stability throughout manufacture, helping support consistent production without changing the intended function.
Selecting the right material requires balancing product performance with practical manufacturing requirements.
A supplier DFM review considers:
Material choice affects every stage of fabrication, from laser cutting and bending to welding and finishing. Increasing sheet thickness may improve stiffness while adding complexity during forming, whereas a thinner material combined with formed features may achieve the required performance more efficiently. Reviewing these decisions early helps ensure the selected material supports both the application and a practical, repeatable manufacturing process.

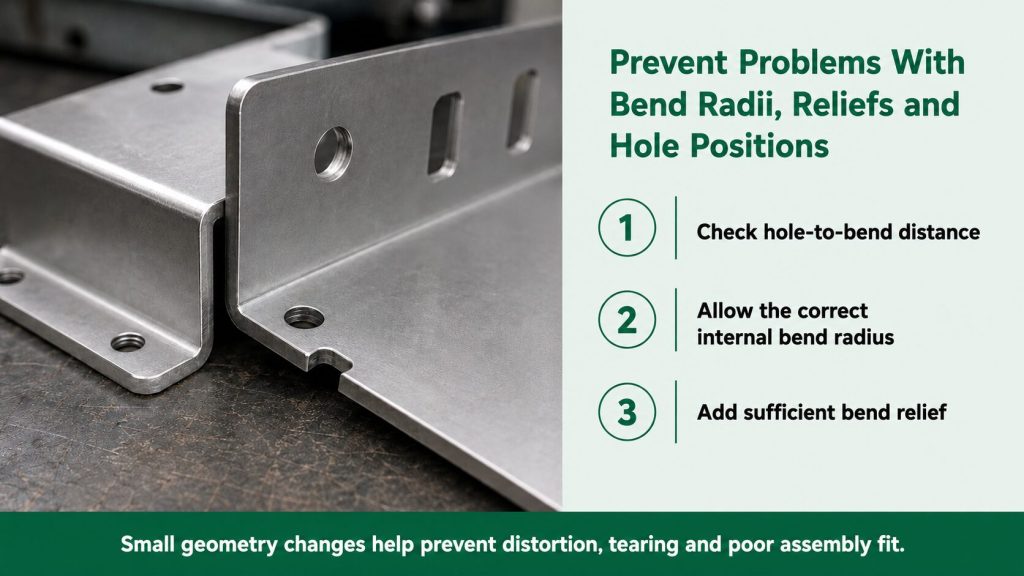

Correct bend geometry improves manufacturability and helps prevent avoidable production issues before fabrication begins.
During a DFM review, manufacturers assess:
Small drawing details can have a significant impact on production. A hole positioned too close to a bend may distort during forming, affecting assembly, while insufficient bend relief can lead to material tearing at the end of a fold. Reviewing these features before production allows engineers to refine designs early, supporting more consistent forming and repeatable manufacturing.
Thoughtful component design can remove unnecessary manufacturing operations while maintaining the intended product function.
Each additional process introduces another production stage requiring equipment, handling and inspection. Secondary drilling, machining or manual finishing may be essential for certain components, although design refinement can sometimes eliminate these activities entirely.
Supplier DFM reviews may identify opportunities to:
The objective is not reducing process steps for their own sake. Instead, it involves designing components which progress through fabrication using the most appropriate manufacturing route, reducing unnecessary intervention and supporting repeatable production.
Learn more about Greengate’s precision sheet metal fabrication services and how integrated manufacturing processes support efficient component production.
Manufacturability extends beyond fabrication. Effective DFM supports assembly, inspection and long-term production consistency across the complete manufacturing process.
A component manufactured accurately may still create downstream challenges if engineers have not considered assembly access, fastening methods or inspection requirements.
Supplier reviews examine factors including:
Designing with downstream manufacturing in mind helps production teams assemble components consistently while maintaining dimensional alignment throughout repeated manufacturing runs.
This collaborative approach also supports robust sheet metal quality control by ensuring important features remain accessible for inspection during production rather than becoming difficult to verify after assembly.
Viewing manufacturability as part of the complete product lifecycle encourages stronger engineering decisions, supporting reliable fabrication alongside efficient assembly and consistent production outcomes.
Supplier DFM reviews help ensure design intent can be translated into practical, repeatable manufacturing before production begins. Experienced sheet metal fabricators assess drawings from a manufacturing perspective, identifying tooling constraints, forming challenges and assembly considerations early in the process.
Addressing these points during design development supports more reliable production and reduces the need for revisions later. If you’re developing a new sheet metal component, Greengate can review manufacturability before production starts. You can also learn more about choosing a full-service sheet metal fabrication partner for projects that benefit from early supplier collaboration.
