Sheet metal fabricators maintain repeatability by controlling materials, drawings, machine settings, tooling and inspection throughout production. Consistent results come from managing the entire manufacturing process rather than relying solely on final inspection.
Small variations in bend angles, hole positions or overall geometry can create assembly issues, particularly during repeat orders. This guide explains how fabricators maintain consistency in metal fabrication, where variation can occur and what manufacturers should consider when selecting a supplier for repeat production.

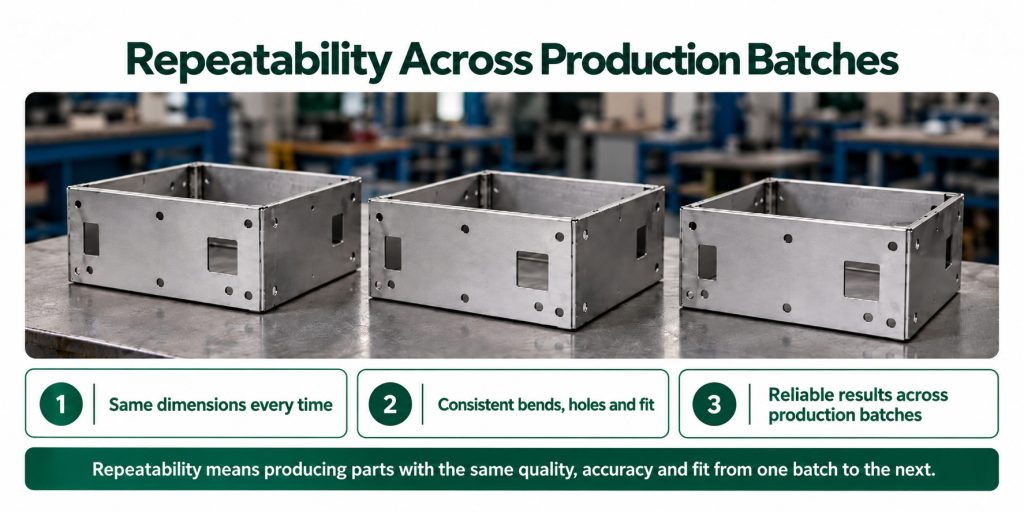

Repeatability in sheet metal fabrication means producing components with controlled variation so each part remains within the agreed drawing, tolerance and functional requirements across production batches. Repeatability differs from accuracy, which measures how closely a component matches the specified dimensions. A process can repeatedly produce the same result while still being set up incorrectly. Inspection confirms whether parts meet specification, whereas repeatability reflects the stability of the manufacturing process itself. For example, a formed bracket may appear acceptable, yet small changes in bend angle or hole position could prevent correct assembly. The level of control depends on the component’s function, tolerance requirements and intended application.
| Term | Meaning |
| Repeatability | Producing consistent results under controlled conditions |
| Accuracy | Producing results close to the specified requirement |
| Tolerance | The permitted range of variation |
| Inspection | Verifying whether requirements have been met |
Consistent production starts with controlled material specifications, approved drawings and a clear revision because stable manufacturing depends on reliable inputs. Material grade, thickness, surface finish and critical dimensions should be defined before production begins, as changes to any of these can influence cutting, forming or welding performance.
Using the specified material throughout production helps maintain repeatability. Differences in thickness or material properties can affect bend angles, springback and weld behaviour, even when machine settings remain unchanged. Where required, certification or traceability should be agreed in advance rather than assumed.
Repeatability also relies on accurate manufacturing information. CAD files, drawings and revision identifiers should match, ensuring production works from one approved source. An outdated drawing or mismatched CAD model can create an inconsistent batch despite a stable manufacturing process. Before production begins, customers should confirm the latest drawing revision, matching design files, material specification and any engineering changes. Repeatability starts with controlled information as much as controlled machinery.
A controlled manufacturing route records how a component progresses through cutting, forming and inspection, helping future batches follow the same approved process rather than relying on operator memory.
Repeatable laser cutting depends on using the correct programme revision, specified material, verified machine setup and suitable cutting parameters. Producing and checking a first-off component confirms the setup before full production begins.
Consistent forming relies on the correct tooling, back-gauge positions, bend sequence and part orientation. Changes to the bend order or material behaviour can alter the finished geometry, making setup verification essential whenever components return for repeat manufacture.
Jigs, fixtures and datums position components consistently throughout production, reducing variation caused by manual alignment. The level of tooling should reflect the component’s complexity, tolerance requirements and production volume.
Jigs and fixtures use stops, pins and clamps to locate components accurately, helping maintain alignment during assembly or welding while reducing repeated setup.
Datums provide common reference points for manufacturing and inspection. Measuring from stable, functional surfaces improves consistency and helps ensure production and inspection follow the same dimensional references.

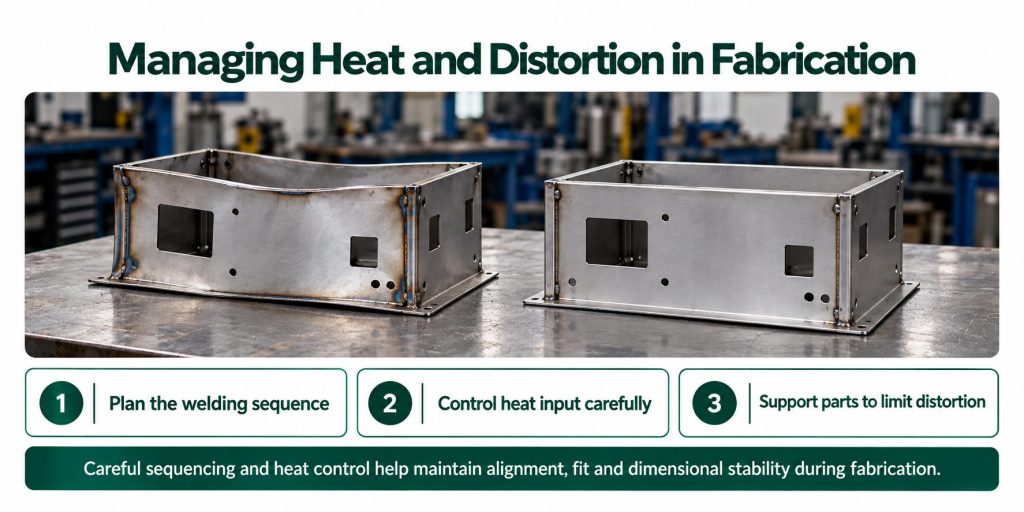

Welding can introduce movement even when components have been cut and formed accurately, making controlled assembly methods essential for repeat production. Consistent joint preparation, component location and welding sequence help maintain dimensional stability throughout fabrication.
Stable weld quality begins with consistent joint fit-up, repeatable tack positions and a planned welding sequence. Controlling heat input helps minimise distortion, while balanced weld placement reduces unnecessary movement during fabrication. Recording relevant production settings can also support future repeat work where appropriate.
Where appearance or downstream finishing is important, weld profile and dressing should follow the agreed specification. Consistent finishing avoids excessive material removal and helps ensure assemblies meet both functional and visual acceptance requirements across every production batch.
Tool wear and machine condition can gradually influence production results, making routine verification an important part of maintaining repeatability. Identifying gradual dimensional drift early helps maintain consistent output across production batches and repeat orders.
Production tooling naturally wears through use. Press brake tools, cutting consumables, locating pins and fixture stops should be checked regularly because deterioration can affect bend consistency, cut quality and component positioning. Planned inspection or replacement helps reduce the risk of progressive variation developing unnoticed.
Routine maintenance supports stable manufacturing by keeping equipment in suitable operating condition. Cleaning, servicing and verifying machine performance after maintenance provide confidence that production can continue from a controlled baseline rather than relying on reactive adjustments once variation has already appeared.

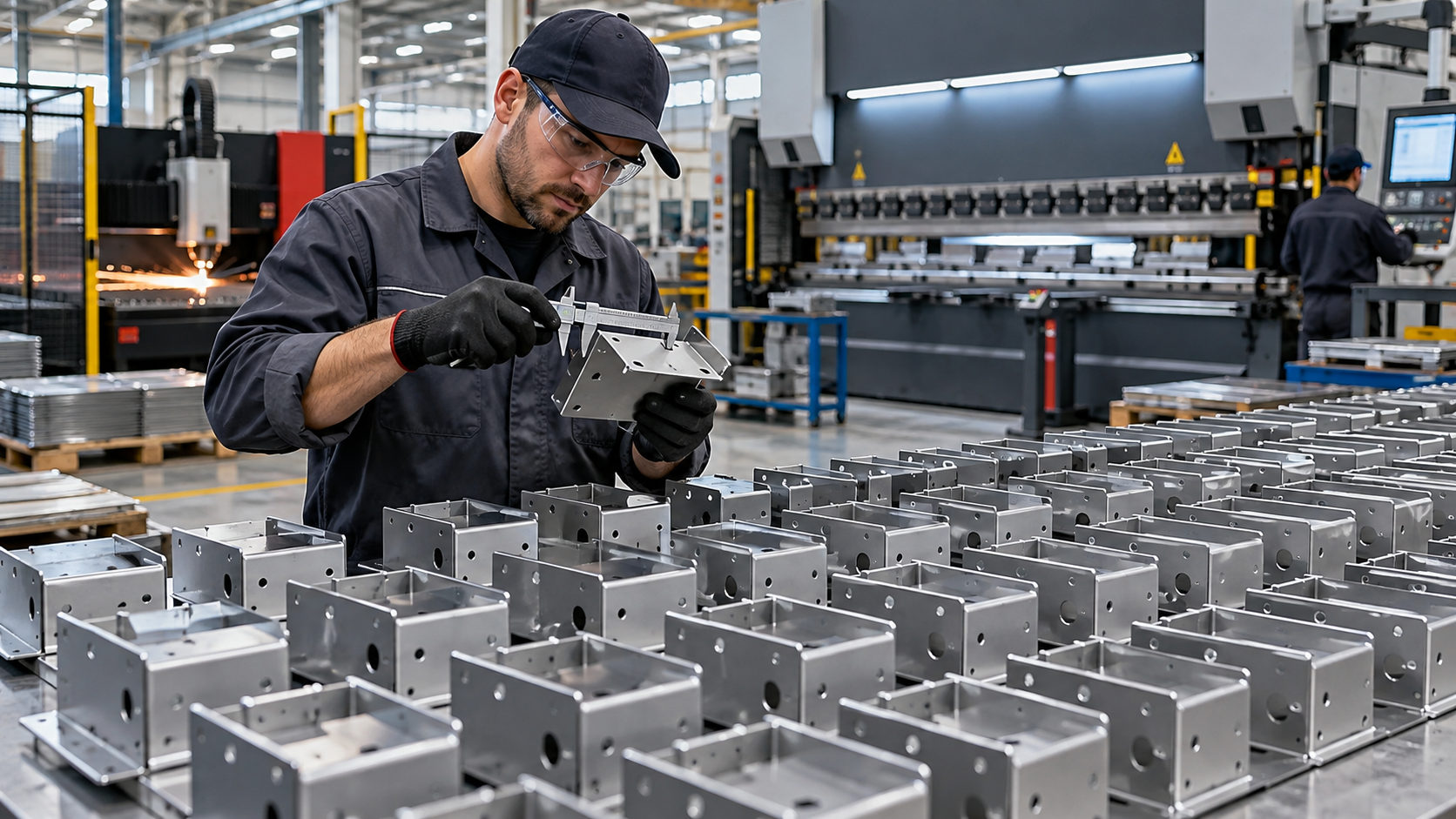

In-process inspection identifies dimensional changes while production is still running, allowing corrective action before variation affects an entire batch. Inspection should support process stability rather than act as the only quality control measure.
A first-off component confirms the approved drawing, material and critical dimensions before full production begins, providing confidence that the manufacturing setup is suitable.
Periodic checks monitor key features during production, helping identify gradual changes before components move outside the specified tolerance.
Final inspection verifies the completed batch against the agreed requirements, confirming dimensions, quantity and condition before release. It validates the manufacturing process rather than replacing effective production control.
Statistical process control (SPC) helps monitor whether a manufacturing process remains stable over time by analysing production data. It is most valuable for repeat or higher-volume work where sufficient measurements can identify trends before components move outside agreed tolerances. For one-off or low-volume fabrication, setup verification and in-process inspection may provide a more proportionate level of control.
Product inspection confirms whether completed components meet specification, while process monitoring evaluates whether the manufacturing process remains stable. Both approaches support repeatability, although a stable process must still be correctly set up to produce accurate components.
Production records provide a controlled starting point when a component returns for manufacture, helping future batches follow the approved design, manufacturing route and inspection requirements. Records support repeatability by preserving manufacturing knowledge, although they should not prevent appropriate process improvements where changes have been reviewed and approved.
The level of documentation should reflect the component and application. Useful records may include authorised drawings, material specifications, process sequences, tooling references, machine programme identifiers and agreed inspection requirements, alongside any approved deviations or manufacturing notes.
A drawing revision, material change, tooling replacement, significant increase in production volume or a long gap between manufacturing runs should prompt the fabrication process to be reviewed before production resumes.
Customers can improve batch consistency by supplying complete, controlled manufacturing information before production begins. Providing one approved drawing revision, matching CAD files, clear material specifications and identified critical dimensions reduces ambiguity throughout fabrication. Early communication about repeat volumes, assembly interfaces and inspection requirements also helps establish an appropriate manufacturing approach from the outset.
When assessing a supplier, ask how drawing revisions are controlled, how first-off components are approved, which dimensions are checked during production, when jigs or fixtures are recommended, how process changes are managed and what manufacturing records can support future repeat orders.
Reliable batch production comes from controlling design information, materials, manufacturing methods, tooling, positioning, welding and inspection as one connected system. Repeatability is built into the process through consistent planning and controlled execution rather than inspected into completed components after manufacture.
As production moves from prototype to repeat manufacture, the greatest attention should focus on the dimensions and interfaces that determine assembly performance. Clear communication between customer and fabricator supports this process by reducing ambiguity before production begins and ensuring future batches start from approved manufacturing information.
If component consistency is critical to your assembly, Greengate can review your drawings, production volumes and functional requirements to discuss a suitable sheet metal fabrication approach. If you would like to discuss an upcoming project or repeat production requirement, contact us to start the conversation.
