Selecting the right brass grade involves more than comparing strength or material cost. When assessing CZ108 vs CZ121, the key question is how the finished component will be manufactured. A folded sheet component has very different material requirements from one produced through turning, drilling or threading from a bar.
CZ108, also known as CW508L, is commonly supplied as sheet and plate for cold-forming applications. CZ121, or CW614N, is a free-machining brass typically supplied as rod or bar for machined components. Although both are brass grades, they are not directly interchangeable.
The correct choice depends on the manufacturing route, stock form, component geometry, joining method, finish and production volume rather than mechanical properties alone.
When Greengate reviews a brass component, the grade needs to be considered alongside the stock form, geometry, machining content, folds, joints and required finish. This statement requires internal approval.

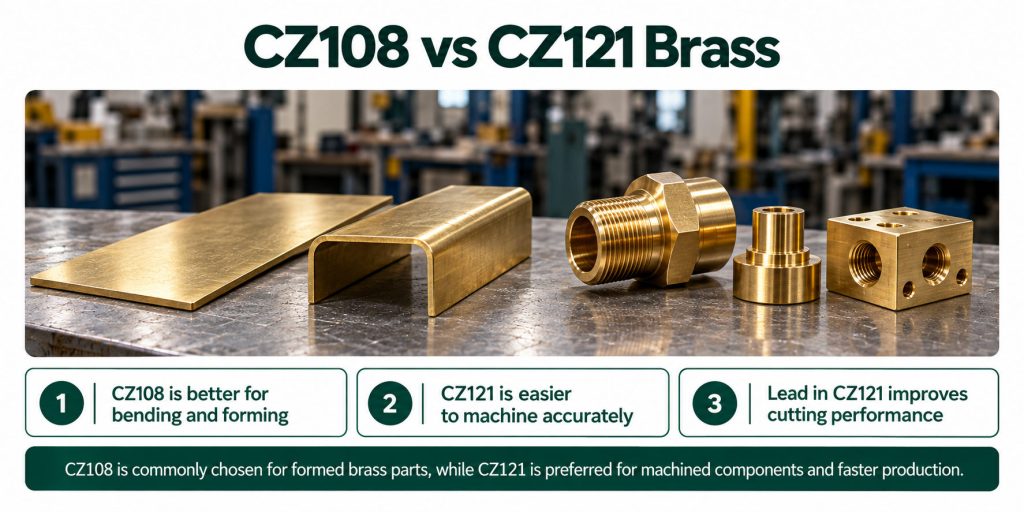

CZ108 is generally selected for components produced through cutting, bending and forming from sheet, while CZ121 is generally selected for parts requiring substantial machining from rod, bar or section. The correct choice starts with the manufacturing route rather than a direct comparison of material properties.
CZ108 (CW508L) is commonly supplied as sheet and plate for cold-forming applications where bending and fabrication define the finished geometry. CZ121 (CW614N) is a free-machining brass typically supplied as rod or bar for components requiring turning, drilling, threading or milling.
Although both are brass grades, they are not direct substitutes. A folded cover or decorative panel is usually better suited to CZ108 sheet because forming creates the final shape. A threaded fitting or precision connector is generally better produced from CZ121 bar, where machining dominates manufacture.
Some assemblies combine both processes. A fabricated enclosure, for example, may use a folded CZ108 outer shell with separately machined CZ121 bosses or threaded inserts. Selecting each grade according to its manufacturing strengths can simplify production and reduce unnecessary processing.
Reviewing the manufacturing route before specifying a generic “brass” grade helps ensure the chosen material supports the component’s geometry, production method and finishing requirements.
CZ108 is broadly a copper-zinc brass developed to retain ductility for forming, while CZ121 contains a controlled lead addition that improves chip formation during machining. These compositional differences support two distinct manufacturing routes rather than making one grade universally better.
Both grades are primarily made from copper and zinc, although their compositions differ in ways that directly affect production. CZ108 (CW508L) is commonly described as an alpha brass, giving it the ductility needed for bending, folding and other cold-forming operations.
CZ121 (CW614N) contains a controlled lead addition and is generally described as an alpha-beta brass. The lead promotes shorter chips during machining, supporting efficient turning, drilling and threading from rod or bar stock.
These differences help explain why CZ108 is usually selected for fabricated sheet components, while CZ121 is widely chosen for heavily machined parts. Specifying CZ121 for a folded cover simply because it machines well, or selecting CZ108 for a component dominated by turning, may introduce unnecessary manufacturing challenges.
Material composition should always be considered alongside stock form, geometry and production method. Current material certification, applicable standards and any project-specific requirements, including restrictions relating to lead-containing brass, should also be reviewed before confirming the final specification.
CZ121 may provide useful strength and hardness for machined components, while CZ108 is valued for the ductility needed in sheet-forming operations. Mechanical properties should always be considered alongside product form, temper and the applicable material standard.
Strength, hardness and ductility each influence manufacturing differently. Ductility is particularly important where components require bending or forming, making CZ108 well suited to fabricated sheet parts. Hardness can support efficient machining, although it should not be viewed as the only factor when selecting a brass grade.
Published material data should also be interpreted carefully. The same grade may be supplied in different tempers, while sheet and bar products can have significantly different mechanical properties. Comparing values from different stock forms without context may lead to incorrect conclusions.
Before relying on published data, confirm the product form, temper, material standard and supplier certification. This provides a more reliable basis for material selection than comparing isolated property values.
CZ108 is generally the more appropriate choice where a component requires bending, folding or other cold-forming operations. Its ductility and common availability in sheet and plate make it well suited to fabricated panels, covers, brackets and decorative components.
Cold forming reshapes metal without significant heating, making ductility essential to achieving accurate bends without damaging the material. CZ108 is widely used for these applications because it is designed to perform well during sheet fabrication.
Successful forming depends on more than the alloy alone. Material temper, thickness, bend geometry, grain direction and the position of holes or slots near bend lines all influence the finished result. Springback should also be considered during design, as it can affect dimensional accuracy after bending.
CZ121 can accommodate limited forming where appropriate, although it is primarily intended for machining rather than demanding cold-forming operations.
For example, a decorative brass panel with laser-cut openings and folded returns is generally better suited to CZ108 sheet than CZ121 bar. Selecting the stock form that matches the finished geometry helps simplify manufacture and reduce unnecessary machining.
Reviewing bend details, tolerances and finish requirements early in the design process supports a more efficient fabrication route.

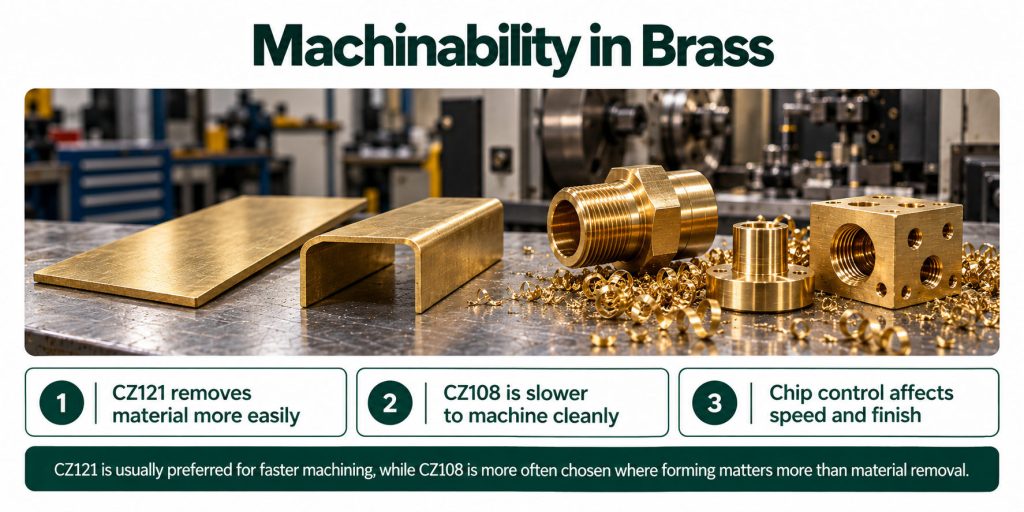

CZ121 is generally the stronger choice for components dominated by turning, drilling, threading or milling. Its lead addition promotes efficient chip formation, making it well suited to repeat machined components produced from rod or bar.
Free-machining brass is designed to produce short, manageable chips, supporting efficient machining and repeatable production. For this reason, CZ121 is widely used for components such as threaded fittings, bushes, spacers and precision connectors.
CZ108 can still be machined where secondary operations are required, although machining is not its primary advantage. A folded sheet component with a few drilled holes, for example, may still be better manufactured from CZ108 if forming defines the finished geometry.
Before specifying a free-machining grade, consider which process dominates production. Where turning and material removal create most of the component, CZ121 is generally the logical choice. Where machining is limited and bending or fabrication defines the part, CZ108 may remain the more appropriate starting material.
CZ108 is generally better suited to laser-cut and folded sheet components because it is commonly supplied in sheet and plate. CZ121 is primarily associated with rod and bar for machining, making it unsuitable as a routine substitute for fabrication-focused sheet applications.
Selecting a stock form that closely matches the finished geometry helps simplify manufacture and reduce unnecessary material removal. A typical sheet metal fabrication process begins with sheet, followed by cutting, deburring, forming and finishing.
For example, a brass fascia with cut-outs and folded returns is generally more efficient to produce from CZ108 sheet than by machining the profile from solid stock.
Laser cutting performance still depends on factors such as material thickness, machine capability and component design. Surface protection, edge condition and secondary finishing should also be considered where appearance is important.
Choosing a stock form aligned with the manufacturing route supports better material utilisation and a more efficient production process.
Both grades may be joined using suitable manufacturing methods, although brazing and soldering are generally more common than fusion welding. The most appropriate process depends on the material grade, joint design, appearance requirements and service conditions.
Joining should be considered during the design stage rather than after the material has been specified. Factors such as heat distortion, visible joints, required strength and surface finish all influence the most suitable joining method. Lead-containing CZ121 may also require additional consideration depending on the process and end-use application.
In some cases, mechanical fixings provide a practical alternative to thermal joining, particularly where maintenance access or cosmetic appearance is important.
Before selecting a joining method, review whether the joint will remain visible, the required strength, polishing requirements, any dissimilar materials and the intended service environment. Assessing these factors alongside the brass grade helps achieve a more practical and efficient manufacturing solution.
Both grades can provide useful corrosion resistance in suitable environments, although neither should be selected solely because brass is generally regarded as corrosion resistant. Moisture, chemicals, stress and application requirements all influence long-term performance.
Environmental conditions should be considered alongside material selection. Components used indoors under stable conditions may face different demands from those exposed to moisture, cleaning chemicals or changing temperatures.
Before confirming either grade, review:
| Question | Why It Matters |
| Is the component used indoors or outdoors? | Exposure conditions differ. |
| Will it contact moisture or chemicals? | The environment influences corrosion behaviour. |
| Is the component highly stressed? | Service conditions affect long-term performance. |
| Are regulatory requirements involved? | Material composition may influence specification. |
| Will it contact dissimilar metals? | Galvanic effects may require assessment. |
Lead-containing brass may also be subject to application-specific restrictions, depending on the intended use.
For example, a decorative indoor panel and a threaded fitting exposed to regular chemical cleaning may require different material considerations despite both being manufactured from brass. Reviewing the operating environment early helps ensure the selected grade supports the component throughout its service life.
Both grades can achieve an attractive brass finish, although colour, reflectivity and consistency depend on more than the alloy designation. Stock condition, machining, forming, polishing and handling all influence the final appearance.
Visible brass components should have finish requirements agreed before production begins. Forming marks, machining direction, thermal joining and polishing can all affect the finished surface, particularly where fabricated and machined parts are combined within the same assembly.
When appearance is important, the specification should define:
For example, a folded CZ108 fascia paired with machined CZ121 control knobs may require agreed finishing processes to achieve a consistent appearance. Identifying these requirements during the design stage allows finishing, handling and inspection to be planned before manufacture, helping produce a more consistent result across the completed assembly.
The better brass grade is usually the one that matches the finished component’s geometry. Folded sheet components generally favour CZ108, while compact parts with bores, threads and turned features generally favour CZ121.
Component shape largely determines the most efficient manufacturing route. Thin-walled covers, panels, brackets and decorative fascias are typically produced from sheet through cutting and forming, making CZ108 the logical starting point. Components requiring turning, drilling or threading are generally better suited to CZ121 bar. Understanding how geometry influences production is an important part of Greengate’s brass fabrication services, where material selection is considered alongside the manufacturing process.
Some assemblies combine both processes. For example, a fabricated enclosure may use a CZ108 outer shell with separately machined CZ121 bosses or threaded inserts. Selecting each grade according to its manufacturing role can simplify production and reduce unnecessary processing.
| Component Type | Initial Grade Direction |
| Folded cover or panel | CZ108 |
| Turned fitting or threaded bush | CZ121 |
| Mixed fabricated assembly | Review both grades by subcomponent |
The lowest overall production cost is not always determined by raw material price alone. Stock form, machining time, material utilisation, finishing and production volume all influence the total manufacturing cost.
Choosing a stock form that closely matches the finished geometry can reduce unnecessary machining, material waste and production time. For example, a folded bracket is generally more efficient to manufacture from sheet, while a precision threaded fitting is better suited to machining from bar.
When comparing manufacturing options, consider:
Prototype and repeat production may also favour different manufacturing routes. Rather than requesting quotations based only on a brass grade, ask suppliers to review the complete production method. Assessing the entire manufacturing process provides a more meaningful comparison than considering material price in isolation.
Choose CZ108 when sheet fabrication and cold forming define the component. Choose CZ121 when machining dominates the design. Where projects combine both processes or have specific application requirements, the specification should be reviewed before confirming either grade.
CZ108 is generally the better choice where:
CZ121 is generally more suitable where:
Consider an alternative approach where the component combines extensive forming and machining, the application places restrictions on lead-containing materials, environmental conditions require a different alloy or the assembly could be simplified by using separate fabricated and machined subcomponents.
| Design Priority | Initial Direction |
| Predominantly folded sheet component | CZ108 |
| Predominantly machined component | CZ121 |
| Mixed fabricated and machined assembly | Review both grades |
| Regulated or demanding application | Review specification before selection |
The best material choice starts with the finished geometry and dominant manufacturing process rather than the alloy name alone.
A brass fabricator can provide more accurate manufacturing guidance when the enquiry includes the material grade, stock form, drawings, finish requirements and production quantity. Specifying only “brass” leaves important engineering decisions unresolved.
A clear specification helps manufacturers assess the most suitable production route before quotation. Include as much relevant information as possible, including:
For example, specifying CZ108 sheet, thickness, finish and bend details provides far more useful information than requesting a generic “polished brass panel”. A detailed enquiry allows the manufacturing route to be reviewed before material selection and production planning are finalised.
Choosing between CZ108 and CZ121 starts with understanding how the component will be manufactured. CZ108 is generally better suited to sheet components requiring bending and cold forming, while CZ121 is typically the stronger choice for parts dominated by machining. Product form, geometry, joining, finish and service environment should all be reviewed before confirming the specification, and some assemblies may benefit from using both grades in separate components.
If you’re ready to discuss your brass component, Greengate can review your drawings, brass grade, finish requirements and production quantity to help determine whether the design is better suited to sheet fabrication, machining or a combined manufacturing route. This wording requires internal approval.
