Why Are Certain Sheet Metal Features Expensive to Punch?

Punching is a controlled shearing process governed by force, clearance and tool condition. On a drawing, a hole or slot appears simple. In production, each feature introduces loading into the punch tip, compressive stress into the die and deformation into the surrounding material.

When teams ask why sheet metal punching features are expensive, the answer usually lies in mechanical interaction rather than machine time alone.

Small diameters increase punch deflection. Edge-adjacent features reduce structural support. Dense perforations multiply hit counts and accelerate die degradation. These effects compound across volume.

For manufacturing SMEs, balancing function with cost, understanding the physical drivers behind punching cost allows design decisions to protect manufacturability before production release.

Small Holes And Tight Tolerances

Hole diameter relative to material thickness directly affects punch stability.

A common engineering rule is that a minimum hole diameter should not fall below the material thickness for reliable shearing.

When the diameter approaches or drops below the thickness, then punch slenderness ratio increases. Tool tip strength decreases. Compressive loading rises sharply.

Small holes require:

• Reduced punch-to-die clearance to control burr formation
• Precise turret alignment to prevent lateral deflection
• Lower stroke speed to reduce impact stress
• More frequent inspection to maintain dimensional repeatability

Tighter die clearances increase frictional contact during penetration. This raises heat at the shear interface and accelerates edge rounding.

As punch edges degrade, burr height increases, and hole diameter drifts. Maintaining tight tolerances across high-volume runs, therefore, increases metal punching production time through slower stroke rates and more frequent tool changes.

A marginal increase in hole diameter or tolerance band often reduces cost without affecting structural function.

Complex Shapes And Special Tooling Requirements

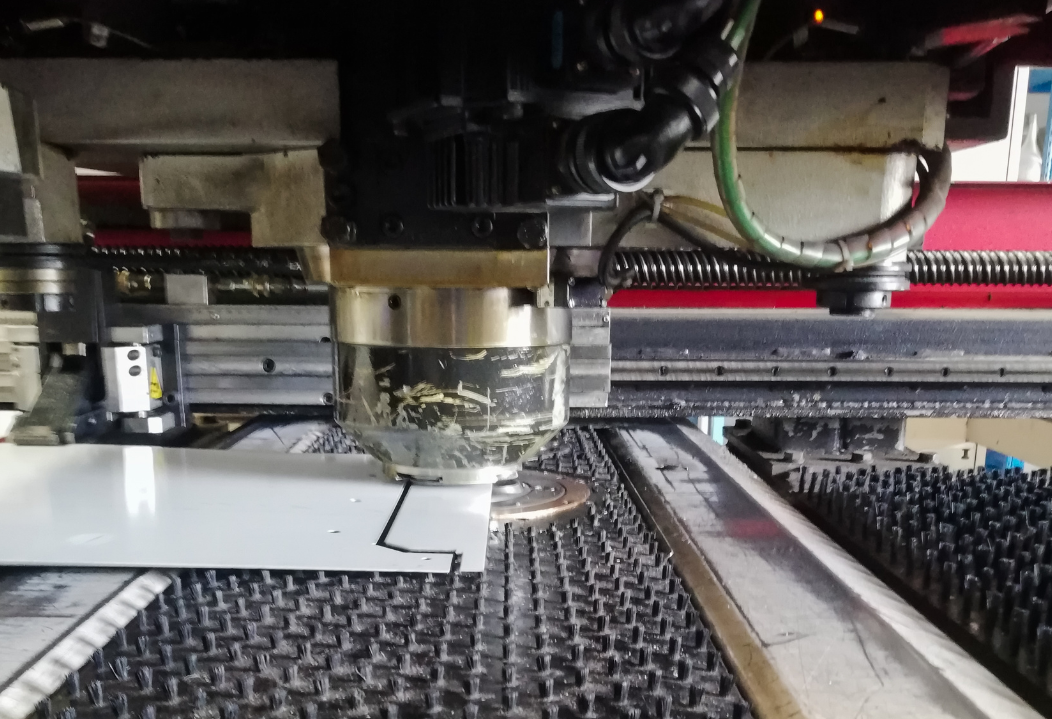

Turret punching systems operate efficiently with standard tool libraries. Once geometry moves beyond circular, square or rectangular forms, cost begins to rise.

Non-standard profiles may require:

• Custom punch and die manufacture
• Defined internal radii to prevent stress concentration
• Secondary nibbling passes for irregular contours

Custom tooling introduces upfront cost and lead time. It also introduces lifecycle cost through replacement and regrinding.

Sharp internal corners are particularly problematic. Punching produces a radius equal to the punch geometry. Specifying an internal corner below the achievable tool radius forces secondary operations or multi-hit nibbling, increasing cycle duration and wear exposure.

These CNC punching limitations rarely appear obvious in early design reviews but significantly influence quoting and throughput stability.

Features Located Too Close To Edges Or Bends

Hole placement in metal parts must account for material support during shearing.

When a feature is positioned too close to an edge, the surrounding material cannot fully resist punching force. This can result in:

• Edge deformation
• Tearing along unsupported sections
• Increased rollover and burr height
• Localised loss of flatness

A typical design guideline is maintaining a minimum distance of at least one material thickness from edge to hole centre, adjusted for hardness and sheet gauge.

Proximity to bend lines introduces further complexity. If holes are punched before forming, material elongation during bending can shift location. If punched after forming, additional fixturing increases cycle complexity.

Cracking along bend lines and ovalisation of holes often follow poorly positioned features. These outcomes increase inspection load and scrap risk.

High Hit Counts And Their Effect On Cycle Time

Punching cost scales directly with stroke count.

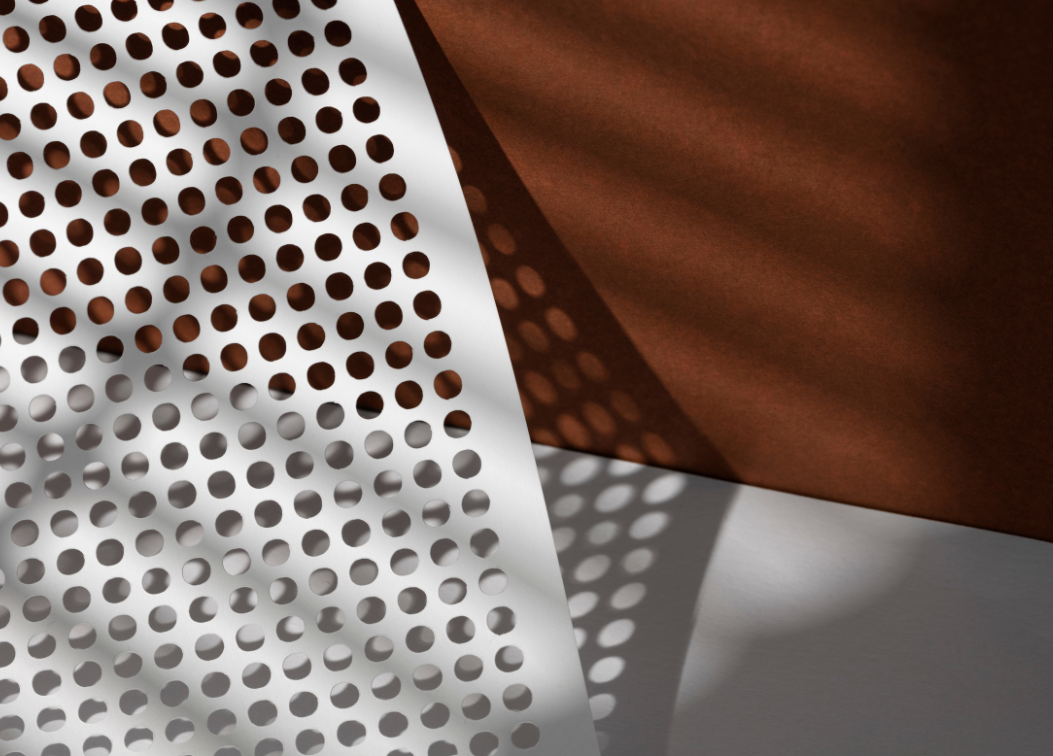

Each hit contributes incremental cycle time. Dense perforation patterns can multiply strokes into hundreds per part. Across batch production, this significantly extends run time.

High hit counts influence cost through three mechanisms:

Time – More strokes extend cycle duration
Tool wear – Repeated impact dulls punch edges
Scrap exposure – Tool degradation increases burr and distortion

Nibbling complex shapes rather than using dedicated tooling further increases hit density. Although flexible, nibbling reduces throughput efficiency.

Repeated high-impact loading accelerates punching die wear causes such as:

• Micro-chipping at the cutting edge
• Clearance growth due to die erosion
• Progressive burr increase across the batch

Reducing pattern density or increasing pitch often lowers cost without compromising airflow, weight reduction or aesthetics.

Material Thickness And Hardness Challenges

Material selection directly affects punch loading and wear rate.

Thicker sheets require higher tonnage. Increased force elevates stress within punch shanks and turret assemblies. Smaller tools experience amplified deflection under these loads.

Harder materials, such as certain stainless grades, demand greater shear force than mild steel equivalents. This increases:

• Edge rounding rate
• Burr formation speed
• Risk of galling between punch and die

Clearance must be adjusted to suit the hardness. Excess clearance increases rollover and burr height. Insufficient clearance raises compressive stress and accelerates tool fracture.

These variables explain why visually similar parts in different materials produce significantly different cost profiles.

Secondary Operations Triggered By Punched Features

Some features increase cost indirectly by triggering avoidable downstream work.

Small-diameter holes and tight spacing frequently require deburring before parts move into fabrication. Edge-adjacent features may require straightening. Dense perforation arrays can compromise flatness, affecting subsequent processes such as metal welding fabrication.

To protect production flow and reduce labour handling, designs should avoid punching requirements that necessitate secondary operations.

Design Decisions That Increase Punch Tool Wear

Tool wear is cumulative and influenced by geometry.

Features that accelerate wear include:

• Sharp internal corners concentrating stress at the cutting edge
• Narrow webs between adjacent holes increasing deformation resistance
• Repeated identical high-load features across volume runs
• Combined punching and forming operations within short spacing

Repeated compressive loading causes micro-fractures along punch edges. Over time, these propagate into visible chipping. Burr height increases progressively before tool failure becomes obvious.

Design simplification supports cost stability. Increasing internal radii, spacing features evenly and avoiding extreme geometry protects tool life and improves quoting accuracy.

Punching cost is governed by force, clearance and wear behaviour. Features that disturb that mechanical balance introduce cycle time, tool degradation and secondary handling.
