Electric vehicles (EVs) are changing the future of transportation, offering a cleaner, greener alternative to traditional cars. However, owning an EV involves more than just the vehicle—it also requires understanding the technology behind the chargers that power them.
An electric car charger is a complex system designed to provide safe, efficient, and reliable energy transfer. For eco-conscious consumers, EV enthusiasts and service providers, knowing the key components of an EV charger can provide valuable insights and help in choosing the right elements for a charge point.
Whether you’re a seasoned EV owner or discovering electric vehicles for the first time, understanding how these components work together—and the role robust metal casings play in protecting them—will give you valuable insights into how chargers ensure your EV operates safely and efficiently, no matter where you charge.
AC-DC Converter
The AC-DC converter plays a key role in an electric vehicle charger by:
- Turning grid electricity (AC) into battery-compatible power (DC).
- Improving charging speed by reducing energy loss.
- Provide reliability through advanced heat management technology.
Modern converters use technologies such as advanced technology to improve efficiency and advanced semiconductors to minimise energy loss and limit heat production. These features improve charging speed and reliability, making the AC-DC converter an essential part of any EV charging system.

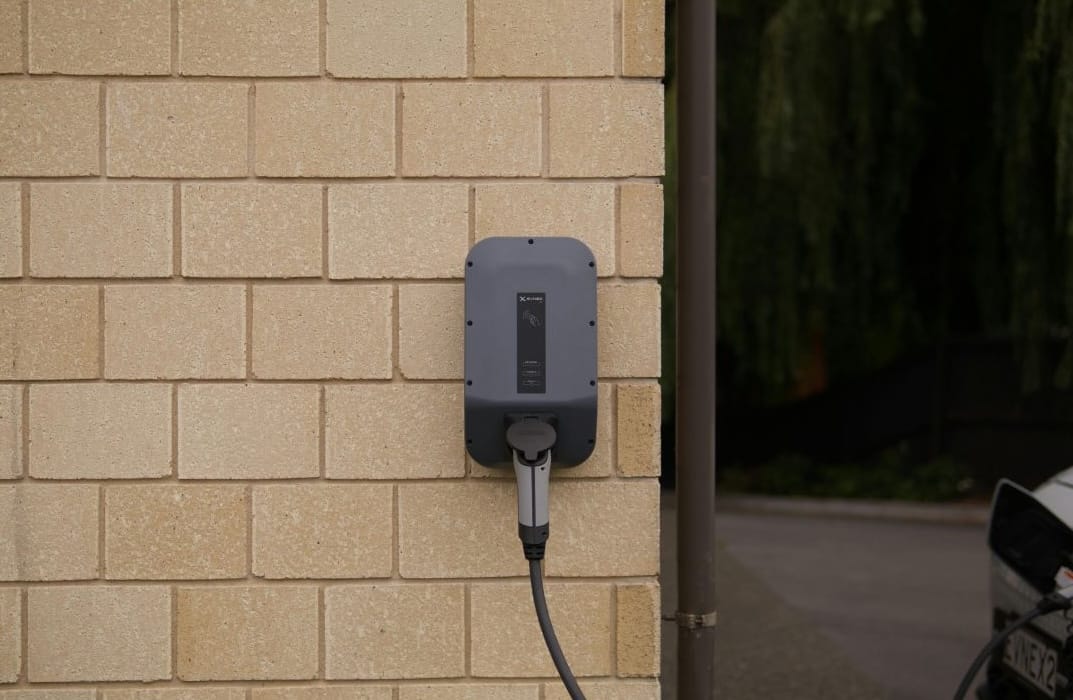

Metal Casing
For more commercial charge points, the metal casing protects the internal components of the charger. Commonly made from materials like aluminium or steel, it shields the charger from external factors such as dust, moisture, and physical impacts.
The casing also plays a major role in managing heat by effectively dissipating it, which is required during high-power charging. Its durability and weather resistance make it suitable for both indoor and outdoor installations.
At Greengate Metal Components, we specialise in producing high-quality metal casings designed for precision fit, durability, and compliance with industry safety standards. These casings contribute directly to the reliability and longevity of EV chargers.
Control Pilot Circuit
The control pilot circuit is responsible for managing communication between the charger and the vehicle. Think of the control pilot circuit as the “middleman” between your charger and your car, making sure the right amount of power is delivered safely and efficiently. This component is key to maintaining compatibility with a wide range of EV models.
In addition to power management, the control pilot circuit handles safety protocols. It monitors the connection between the charger and the vehicle and can interrupt the charging process if an issue is detected. This dual functionality supports both charging efficiency and user safety, making it an integral part of the charger’s overall design.
Ground Fault Circuit Interrupter
The ground fault circuit interrupter (GFCI) is a necessary safety feature for vehicle chargers. Its main role is to detect ground faults—situations where electrical current flows along an unintended path—and to cut off power to prevent hazards such as electric shocks.
The GFCI continuously monitors the electrical current and responds instantly to irregularities by stopping the charging process. This feature protects users and complies with safety regulations, making it a standard component in modern EV chargers.

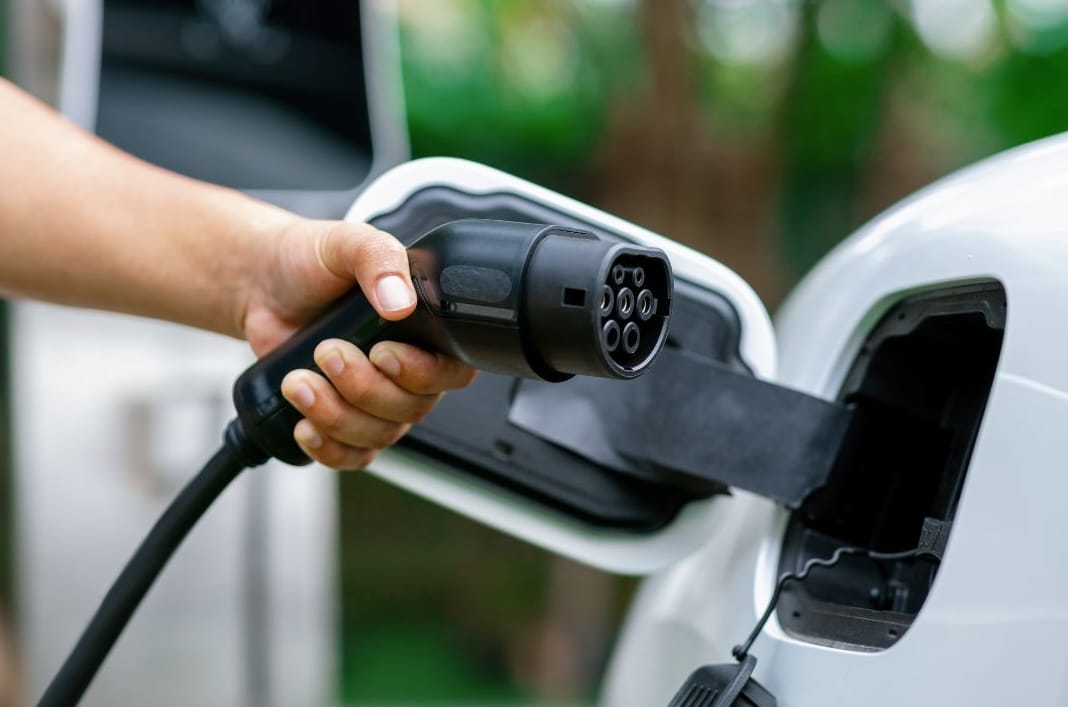

Surge Protection
One essential feature is surge protection, designed to safeguard against power surges that can occur in the electrical grid. These surges, often caused by lightning strikes or fluctuations in grid supply, can damage sensitive components within the charger or the battery itself.
A surge protection system typically includes components like metal oxide varistors (MOVs) and transient voltage suppressors, which absorb excess energy and redirect it safely. By preventing damage, this feature not only protects the charger and the vehicle but also contributes to a longer lifespan for both.
Temperature Sensors
Temperature sensors monitor heat levels within the charger during operation. Overheating can damage internal components or reduce the efficiency of the charging process, making these sensors useful for maintaining performance.
These sensors measure heat levels continuously and can trigger safety mechanisms if temperatures exceed safe thresholds. This prevents damage to both the charger and the connected vehicle. By managing heat effectively, temperature sensors support the safety and longevity of the charging system.
Cooling System
The cooling system manages heat generated during the charging process, particularly in high-power chargers. Without effective cooling, components can overheat, reducing efficiency and potentially causing damage.
There are two main types of cooling systems used in chargers: air cooling and liquid cooling. Air cooling relies on fans to circulate air and disperse heat, while liquid cooling uses a coolant to absorb and transfer heat away from key components. Liquid cooling is often more effective in high-performance chargers due to its ability to handle greater heat loads.
Air cooling is ideal for home or standard installations due to its simpler design, lower cost, and minimal maintenance. However, it may struggle with heat management in high-power chargers and can produce noise from fans. On the other hand, liquid cooling excels in managing heat for high-power or commercial chargers, operating quietly and supporting frequent use. While more effective, liquid cooling involves higher costs and periodic maintenance, such as coolant replacement. For instance, a liquid-cooled charger suits fleet operations needing quick charge turnarounds, whereas air-cooled systems work well for personal use in mild climates.
By preventing overheating, cooling systems support consistent performance and extend the charger’s operational lifespan.
Mounting Bracket
The mounting bracket secures the charger in place, providing stability and ease of use for the customer. It is commonly made from durable materials like steel or reinforced aluminium to keep the charger securely positioned during operation.
Different designs are available for indoor and outdoor installations. Outdoor setups in coastal areas may need corrosion-resistant brackets, while indoor installations can prioritise easy-to-install, heavy-duty options. A well-constructed mounting bracket supports the charger’s structure and helps prevent potential damage caused by improper installation or environmental factors. Choosing the right bracket is required for both functionality and longevity.
Electric vehicle chargers are made up of several components that work together to deliver safe, efficient, and reliable charging. Each part, from the AC-DC converter to the mounting bracket, plays an important role in maintaining performance.
Greengate Metal Components provides high-quality metal casings and mounting brackets engineered for precision, durability, and compliance with safety standards. With expertise in sheet metal fabrication and protective coatings, we ensure that every component is built to last.
Contact Greengate Metal Components today to discuss your EV charger metal casing needs and discover how we can support your next project.
